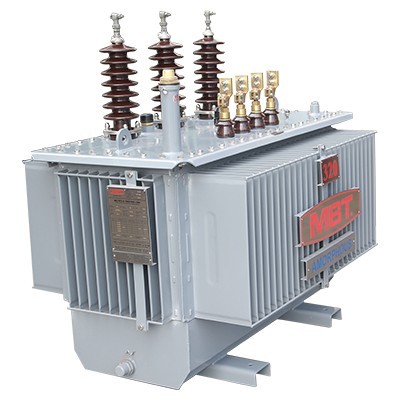

Three phase Amorphous transformer 320kVA

Contact to know the price
Product specifications

  • Rated power: 320kVA
  • Winding connection: Dyn11
  • Frequency: 50Hz
  • Voltage: 22/0,4kV
  • No-load losses (Po): 390 W
  • Short-circuit losses(Pk): 3330 W
  • Maximum no-load current(I0): 2%
  • Short circuit voltage(Uk ): 6%
  • Standard: : TCVN 6306 (IEC 60076); Decision 62 / QĐ – EVN
  • Quality standard: ISO 9001:2015; ISO 14001:2015

Introduction of 320kVA - 22 / 0.4kV 3-phase Amorphous transformer

The 320kVA three phase Amorphous transformer is an innovative product of MBT. With the spirit of continuous learning and improvement together with the investment in modern and advanced technology machines to improve the quality of transformers and our services, MBT's experienced engineers successfully researched and developed a 320kVA three-phase Amorphous transformer. A high-quality transformer with many outstanding features compared to conventional transformers.



Join MBT to learn about this transformer through the article below!

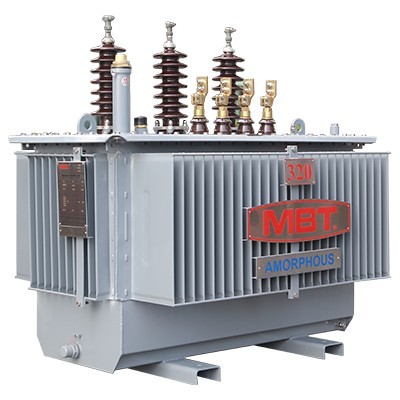

3-phase 320kVA Amorphous transformer

Features of 3-phase 320kVA Amorphous transformer

The MBT 3-phase Amorphous Transformer (another name is a high-efficiency amorphous core transformer) is a type of magnetic core transformer made of amorphous steel.



Amorphous steel specialized for amorphous transformers.



The machine's amorphous steel is magnetic steel with a thickness of only 1/10 of the traditional silicon steel and has high magnetic conductivity and low loss. Distribution transformers manufactured by MBT with a magnetic core made of amorphous steel have a no-load loss rating of 1/4 to 1/3 of conventional silicon steel transformers. At the same time, the temperature in this amorphous steel core is low, which will significantly reduce CO2 emissions into the environment.

Outstanding features of 320kVA three phase Amorphous transformers

The MBT 3-phase Amorphous transformer was born with many outstanding features that surpass the electric equipment of the same type: Save operating costs, reduce CO2 emissions into the environment, increase product life cycle.



MBT's 3-phase distribution amorphous transformer operates at high efficiency. Thanks to the amorphous steel material, the machine can reduce up to 80% of power loss, thereby saving a considerable amount of money. If a traditional corrugated core transformer consumes about 9,000 kWh of electricity/year, the Amorphous transformer consumes about 2,000 kWh of electricity/year. Thereby effectively saving electricity and budget for the state.


For example:

  • With an ordinary 630kVA transformer, only No-load loss Po = 787W, 6.894kWh is lost annually
  • With 630kVA Amorphous transformer, only the no-load loss Po = 270W, 2.365kWh is lost per year

The Amorphous MBT 3-phase distribution transformer, although its cost is 20-30% higher than the transformers using silicon steel core, but in return, the machine's life is up to 30-40 years. The cost saved is a lot like the cost of maintenance, the cost of fixing the errors.



The Amorphous machine's operating temperature will also be lower than that of other devices, which significantly reduces the amount of CO2 emitted into the environment, contributing to saving electrical energy, protecting the environment, and meeting market demand.

Structure of the 3-phase Amorphous transformer with a capacity of 320kVA

Amorphous transformers are fundamentally different from other transformers in the steel core. Amorphous machines are coiled from alloys with an irregular (amorphous) atomic structure. Due to the lack of a systematic structure, these metals are also known by other names as "metallic glass."



MBT's Amorphous transformer manufacturing process meets ABB standard



Thanks to the incorporation of a rapid cooling method when the metal is melted. We can prevent the metal from crystallizing and obtaining a glass-shaped solid metal whose structure is thinning - a complete material perfect for saving energy and can be used as a substitute for cold-rolled sheet.



As a result, the Amorphous transformer is a super loss-reducing device that uses high technology and has a low loss coefficient.

The 3200kVA 3-phase MBT Amorphous transformer meets the product quality standards.

The MBT 3200kVA 3-phase Amorphous transformer undergoes strict quality control at all stages from input material to output product testing, ensuring that it fully meets the stringent requirements of International standards: IEC-76, ANSI, TCVN 6306

1. Quality management system ISO 9001: 2015

The operation of the whole MBT system is strictly controlled and managed. This ensures the quality of products in all stages, from receiving customer requests to design, materials, production, installation, testing, packaging, delivery, after-sales, all of which operate under strict and logically linked processes.


2. Environmental management ISO 14001: 2015

MBT pioneered the application of the environmental management system ISO 14001: 2015. The implementation of this process is a testament to MBT's responsibility to a wide range of customers. MBT commit to providing high-quality technical products that are most environmentally friendly.


3. Accreditation certificate ISO / IEC 17025: 2017

ISO / IEC 17025: 2017 certification confirms that MBT's technical quality meets the requirements of all specific international standards for testing and calibration laboratories. All MBT's products are fully tested in a qualified testing room before leaving the factory, ensuring stable quality and providing absolute peace of mind for customers.



Product quality certification of MBT



A special thing about this transformer is that in addition to meeting the general transformer standards of IEC international standards and the specific requirements for solar energy projects. Our transformers still fully meet the standards of the domestic electricity industry such as QD62 / EVN; QD2608 / SPC; Decision 3079 / CPC; Decision 1011 / NPC; 8525: 2015 ...

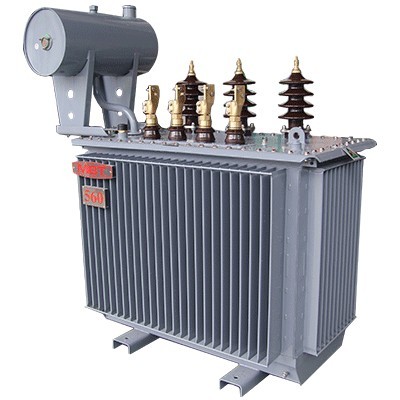

List of common oil-immersed transformers with capacity from 100kVA - 2500kVA and voltage 35-22kV.

Standard

ISO 9001:2015; ISO 14001:2015; IEC/ISO/EN/DIN/ASTM/IEEE/ANSI/TCVN/AS

Rated power (KVA)

Max. no-load loss Po (W) Max. short-circuit loss Pk(W) Max. no-load current I0 (%)  Min. short-circuit voltage Uk(%)  Energy efficiency(E50%)

50

120

715

2

4

98,82

75

165

985

2

4

98,82

100

205

1250

2

4

98,98

160

280

1940

2

4

99,05

180

295

2090

2

4

99,21

250

340

2600

2

4

99,21

320

385

3170

2

4

99,27

400

433

3820

2

4

99,31

560

580

4810

2

4

99,37

630

780

5570

2

4

99,32

750

845

6540

2

5

99,34

1000

980

8550

2

5

99,38

1250

1115

10690

2

5

99,40

1600

1305

13680

2

6

99,41

2000

1500

17100

2

6

99,43

2500

1850

21000

2

6

99,44

3200

2340

24460

2

7

99,95

Main products of MBT

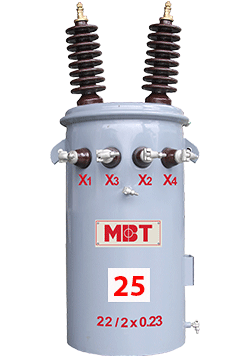

- Single-phase transformer
- Sealed type three-phase oil-immersed transformer
- Open type three-phase oil-immersed transformer
Dry-type transformer

- Solar transformer

- Cast resin transformer

- Amorphous transformer
