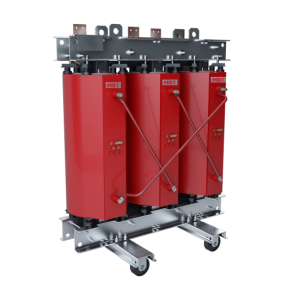

Accessories of dry type transformer
A dry-type transformer is the most important and expensive electrical equipment in a power substation. Therefore, to achieve optimum performance and extend product life, it is best to conduct periodic maintenance checks on your machines. Besides that, it is also equipped with some accessories as follows:
Related Articles:
Digital type thermometer
A Digital type thermometer has a digital monitor for the temperature of coils.
Digital type thermometer
Label
Restricted contact during the operation
Danger Label
Grounding terminal
The grounding terminal is arranged on the bottom of the frame and should be checked up before an operation.
Anti-vibration pad
Anti-vibration pad makes noise down on operation.
Anti-vibration pad

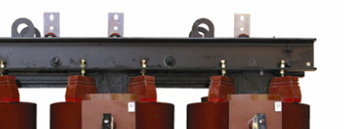

LV terminals
LV terminals are arranged on top of the body and should be checked up before an operation.
LV terminals
HV Terminals
HV terminals are arranged on top of the coil and should be checked up before an operation.
HV Terminals
Lifting lug
Lifting lugs are arranged on top of the frame for lifting.
Lifting lug
Tap terminal link
Tap terminal link on low voltage side can adjust system conditions and is connectable in their no-load state.
Tap terminal link

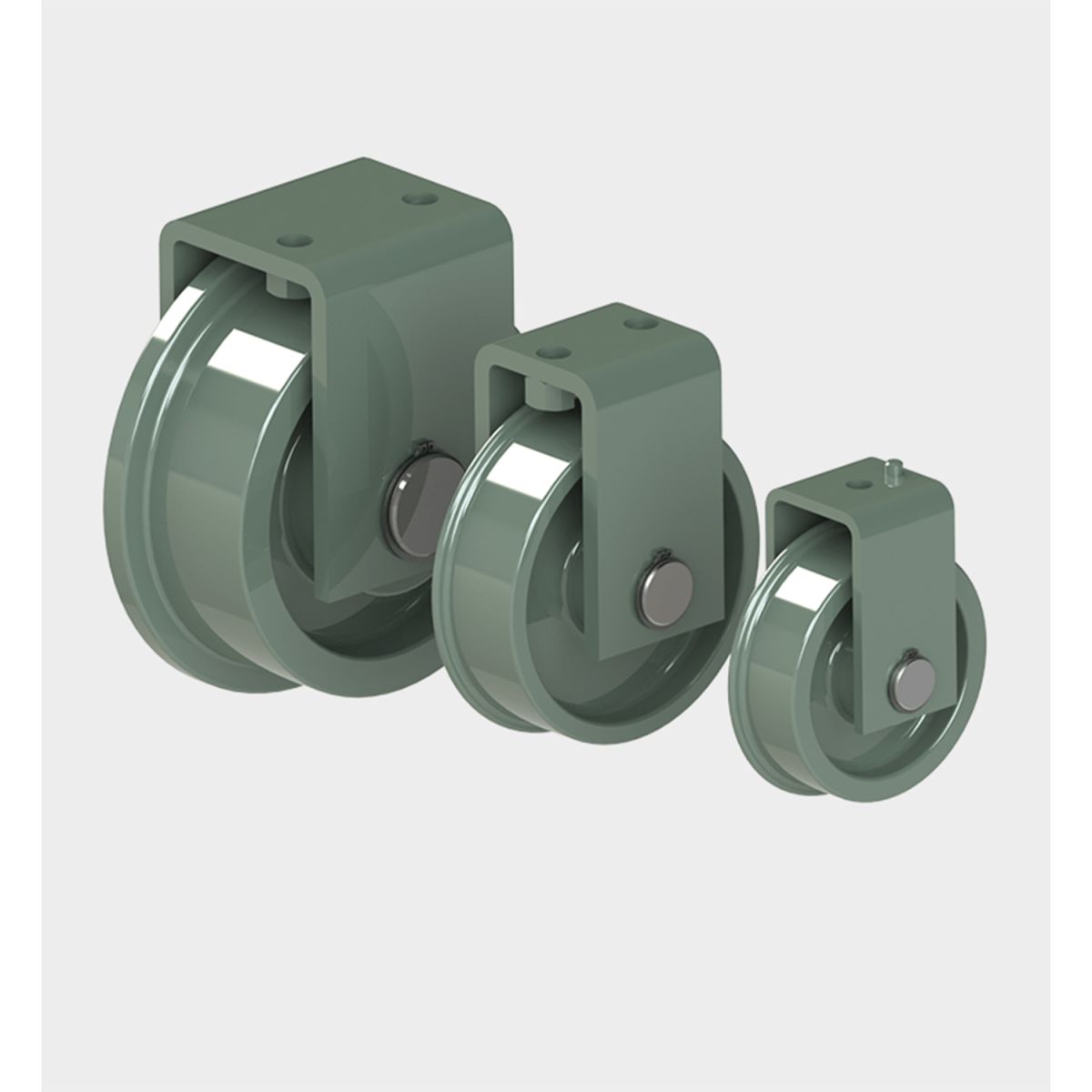

Bi-directional wheel
Bi-directional wheels are for traveling lengthways or sideways
Bi-directional wheel
Cooling fan
To increase power reserves, the cast resin transformer can be equipped with auxiliary ventilation permitting a 30-40% power increase.
Cooling fan

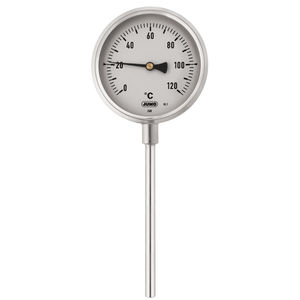

Dial type thermometer
Dial type thermometer is located on line top of the body.
Dial type thermometer

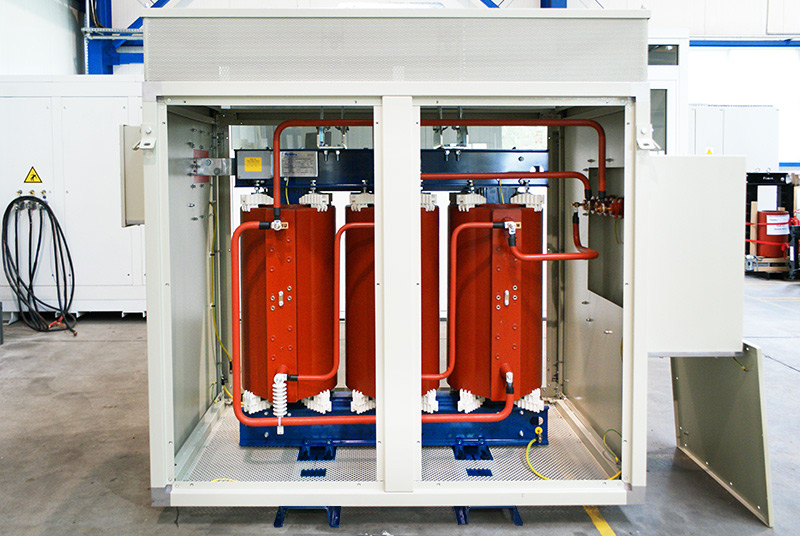

Enclosure
Cast resin transformer can be equipped with an enclosure
Enclosure
