Transformer drawing| MBT distribution transformer drawing

MBT Transformer drawing


If you want to know fully about a distribution transformer, power transformer, step-up and step-down transformer instead of transformer specification, you need to read the transformer drawing.


There is some common transformer drawings of MBT company, that we exported in Pakistan, Uganda, Indonesia, Bangladesh, we will show you

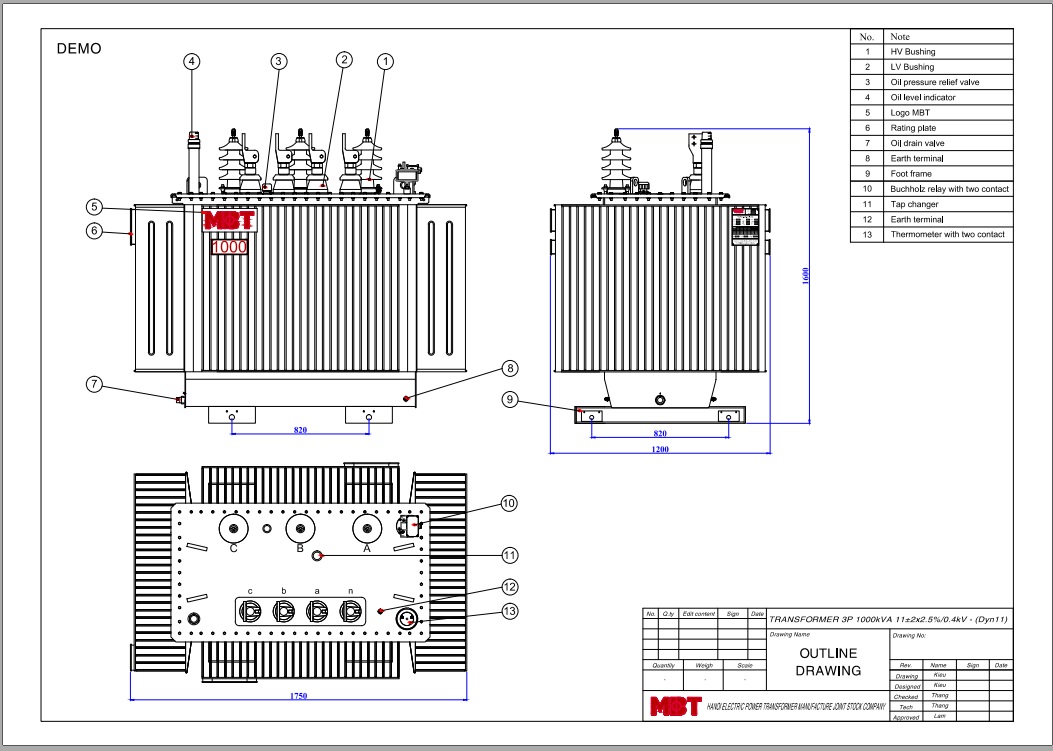

1. 1000 KVA transformer drawing

MBT 1000kva transformer drawing

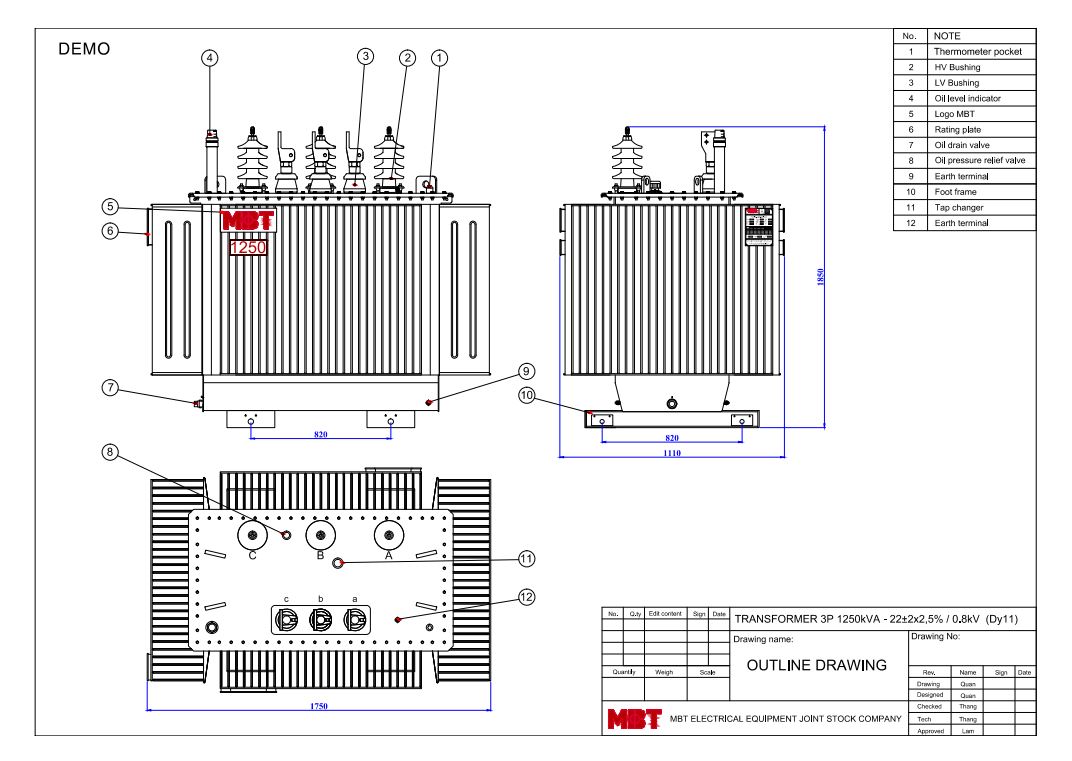

2. 1250KVA transformer drawing

MBT 1250 kva transformer drawing

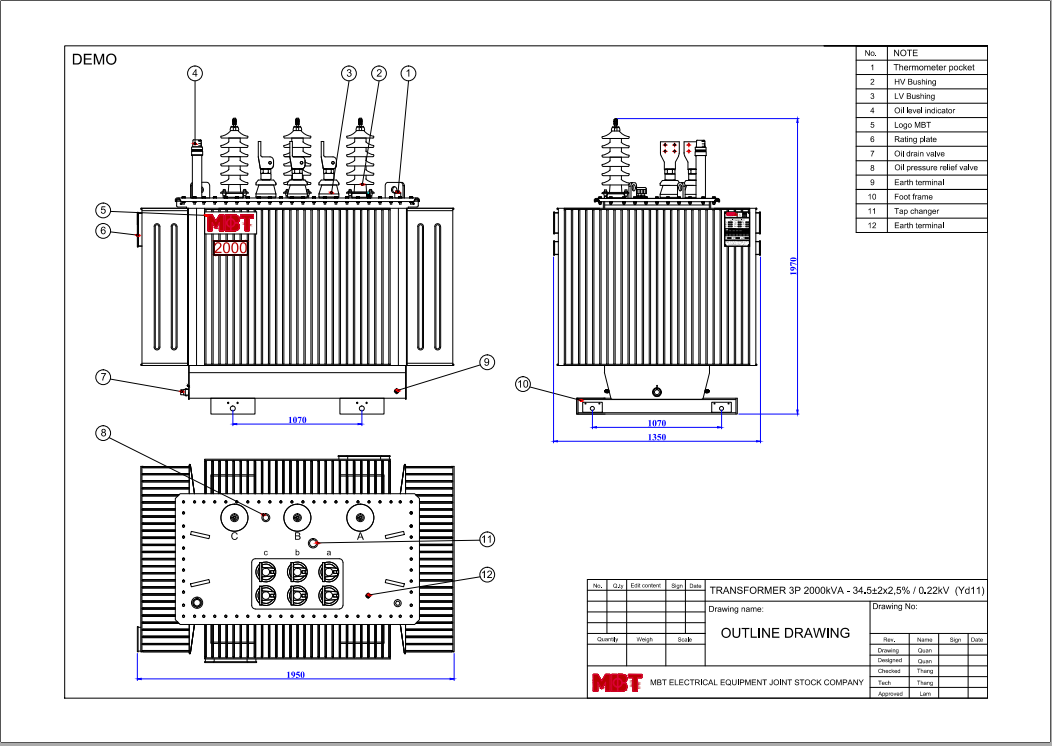

3. 2000KVA transformer drawing

2000kva transformer drawing

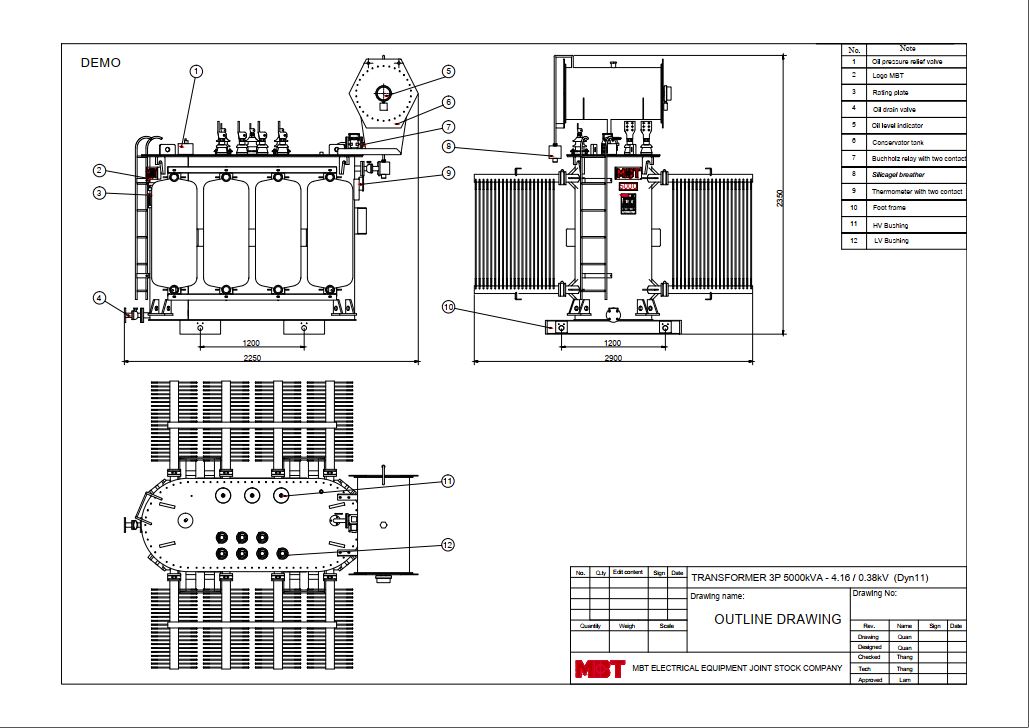

4. 5000kva transformer drawing

MBT 5000kva transforme drawing

If you have a transformer request or need a consultation of transformer drawing, transformer specification which is suitable for your country, factory, you can contact to us via email: [email protected] and hotline: +84 913 006 538
