As modern power distribution systems continue to evolve, utilities and industrial projects increasingly require safer, more compact, and highly reliable transformer solutions. One of the most widely adopted solutions today is the Pad-Mounted Transformer.

Pad-mounted transformers are commonly used in urban distribution networks, industrial zones, renewable energy projects, and underground electrical systems thanks to their compact structure, high operational safety, and easy installation.

This article explains what a pad-mounted transformer is, its structure, advantages, applications, and important technical standards.

What Is a Pad-Mounted Transformer?

A Pad-Mounted Transformer is a ground-mounted distribution transformer installed outdoors on a concrete pad. Unlike traditional substations, this type of transformer integrates multiple electrical components into a single enclosed and secure unit.

A typical pad-mounted transformer includes:

• Medium-voltage switchgear
• Transformer compartment
• Low-voltage distribution compartment
• Protection and cable connection systems

The entire system is enclosed within a weatherproof metal cabinet designed for safe public access and outdoor operation.

Pad-mounted transformers are widely used in:

• Urban power distribution systems
• Commercial buildings
• Industrial plants
• Solar and wind farms
• Underground electrical networks

Structure of a Pad-Mounted Transformer

A standard pad-mounted transformer is generally divided into several separate compartments.

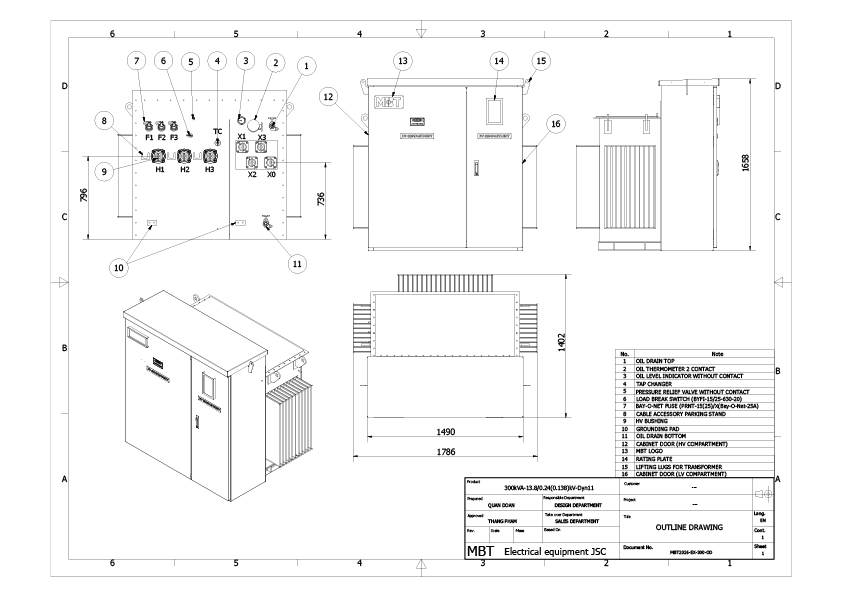

outline drawing – pad mounted transformer

1. Medium Voltage (MV) Compartment

The MV compartment contains switching and protection devices such as:

• Load Break Switches (LBS)
• Ring Main Units (RMU)
• Vacuum Circuit Breakers (VCB)
• Protective fuses

This section controls and protects the medium-voltage side of the electrical system.

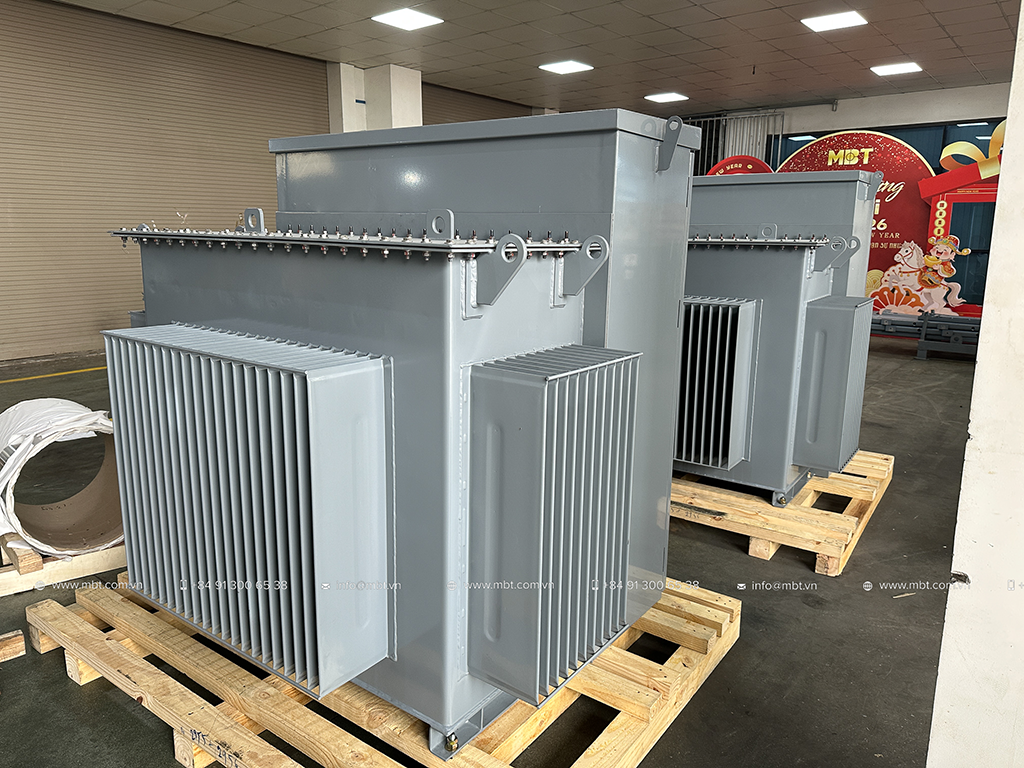

2. Transformer Compartment

The transformer itself is usually designed as a hermetically sealed oil-immersed transformer or uses environmentally friendly biodegradable insulating oil.

This design helps:

• Reduce maintenance requirements
• Improve operational reliability
• Extend transformer lifespan

3. Low Voltage (LV) Compartment

The LV compartment includes:

• Busbars
• MCCB/ACB protection devices
• Metering systems
• Cable terminations

It distributes stable electrical power to residential, commercial, or industrial loads.

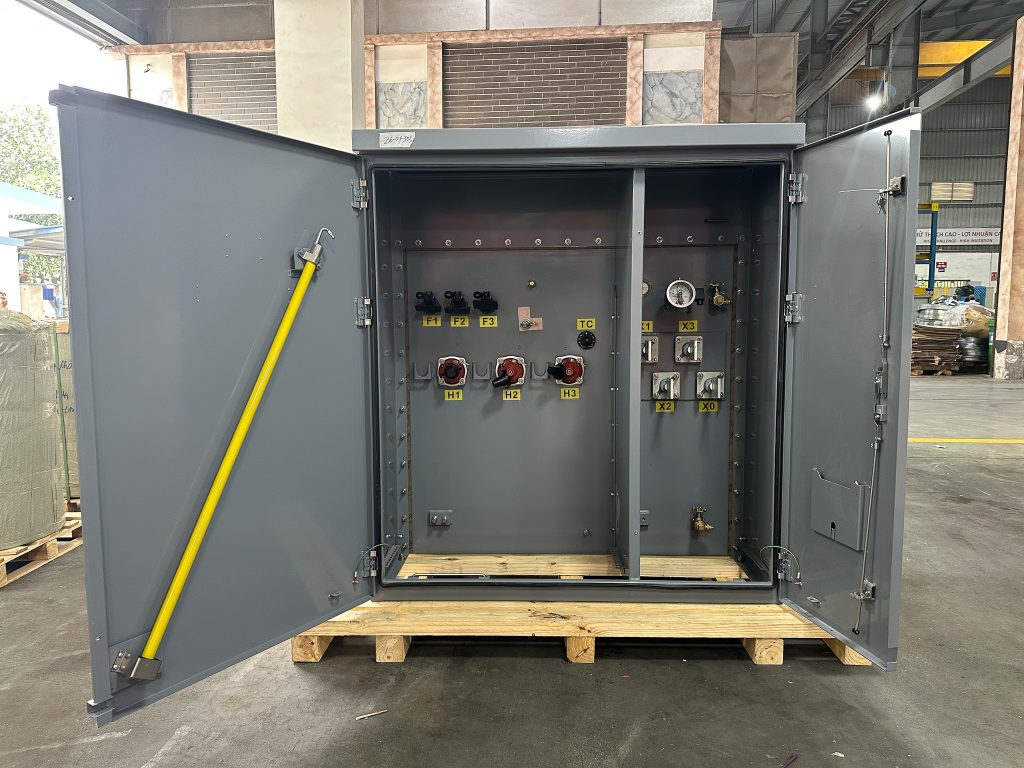

4. Protective Enclosure

The entire transformer station is protected by a high-IP-rated steel enclosure designed to resist:

• Water
• Dust
• Corrosion
• Unauthorized access

Most pad-mounted transformers use a dead-front design, meaning energized components are fully enclosed for maximum operator safety.

Advantages of Pad-Mounted Transformers

High Safety for Outdoor Installation

Pad-mounted transformers are specifically designed for public areas such as residential zones, sidewalks, and commercial developments.

Their fully enclosed structure significantly reduces electrical hazards and improves operational safety.

Compact Design and Space Saving

Compared to traditional substations, pad-mounted transformers occupy less installation space due to their integrated compact design.

This makes them ideal for:

• Urban projects
• Underground distribution systems
• Limited-space industrial applications

Fast Installation and Lower Construction Costs

Pad-mounted transformers are factory-assembled and tested before delivery.

On-site installation only requires:

• Placement on a concrete pad
• Cable connections
• Final commissioning

This minimizes:

• Installation time
• Civil construction work
• Overall project costs

High Operational Reliability

These transformers are designed to operate reliably under harsh environmental conditions, including:

• High humidity
• Dust
• Tropical climates
• Outdoor exposure

Easy Maintenance

Separate compartment construction allows easier inspection, operation, and maintenance procedures.

Applications of Pad-Mounted Transformers

Pad-mounted transformers are widely used across many industries and infrastructure projects.

Urban Electrical Distribution

They are commonly installed in:

• Residential areas
• Shopping centers
• Office complexes
• Smart city infrastructure

Industrial Facilities

Factories and industrial zones use pad-mounted transformers for reliable and efficient power distribution.

Renewable Energy Projects

Pad-mounted transformers are highly suitable for:

• Solar power plants
• Wind farms
• Battery energy storage systems

Their compact footprint and outdoor capability make them ideal for renewable energy applications.

Underground Power Systems

Modern underground electrical networks often rely on pad-mounted transformers for safe and aesthetic power distribution.

Technical Specifications and Standards

Pad-mounted transformers are typically manufactured according to international standards such as:

• IEC
• ANSI
• IEEE

Common specifications include:

• Power ratings from 300 kVA to 5000 kVA or higher
• Voltage classes: 11kV, 22kV, 33kV
• Mineral oil or biodegradable insulating oil options

High-quality pad-mounted transformers are designed to provide:

• Low losses
• High efficiency
• Long service life
• Reliable protection performance

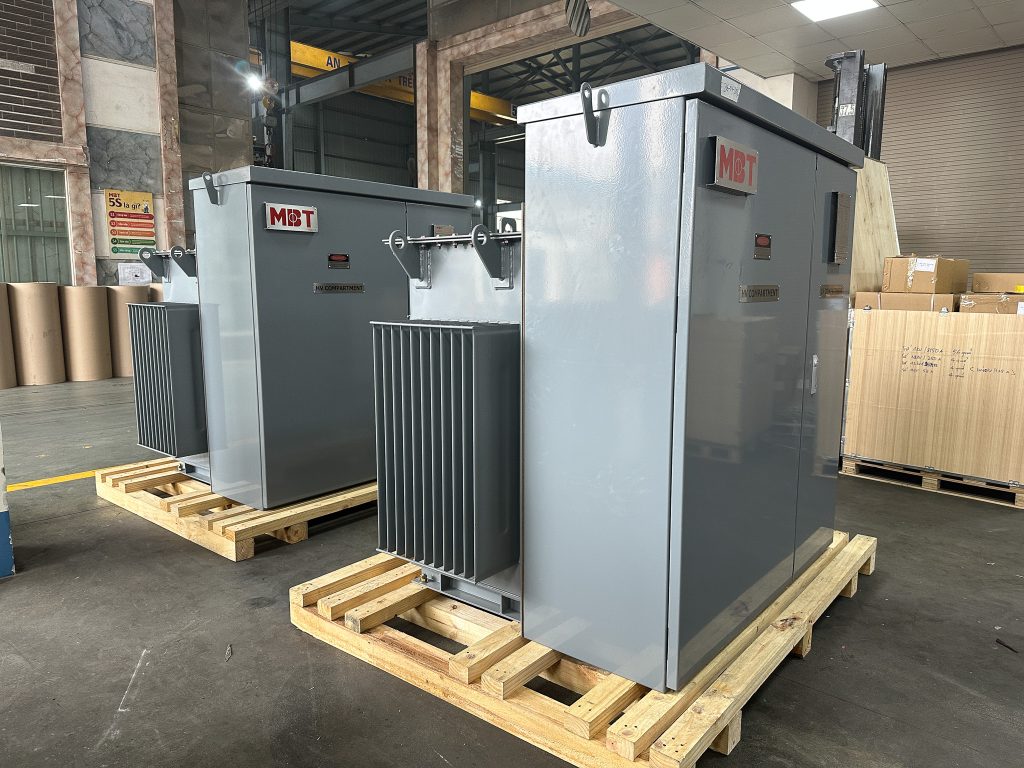

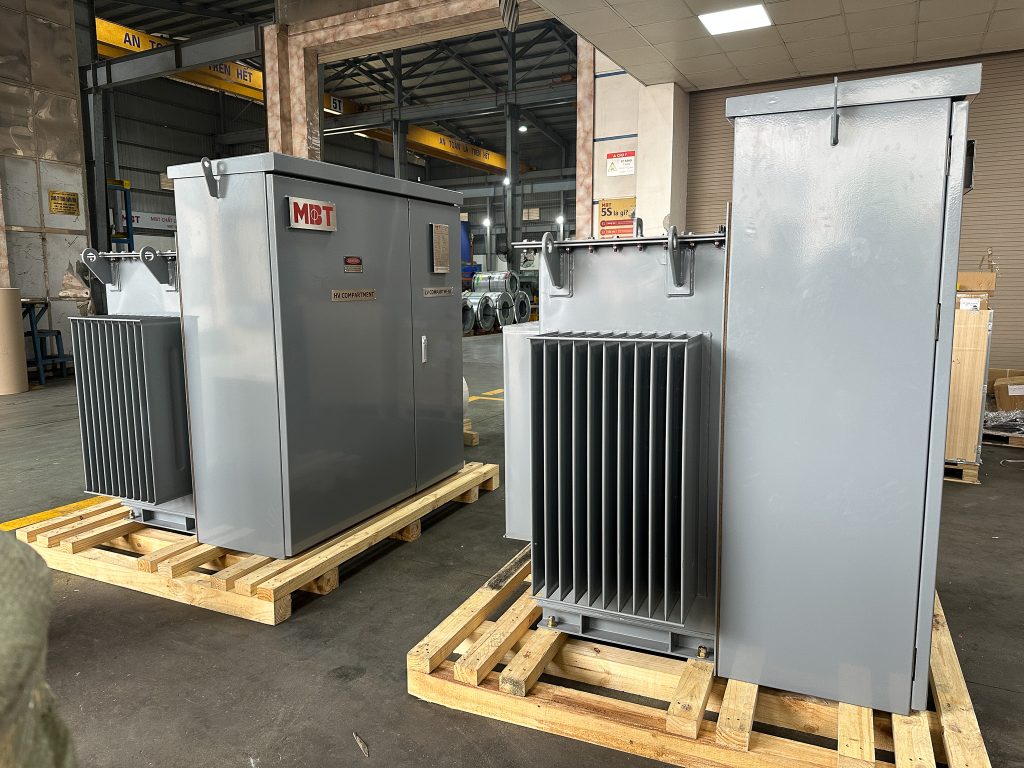

MBT Pad-Mounted Transformer Solutions

MBT provides integrated pad-mounted transformer solutions for domestic and international power projects.

MBT pad-mounted transformers feature:

• Compact and safe design
• High operational efficiency
• Low energy losses
• IEC-compliant manufacturing
• Suitable solutions for urban, industrial, and renewable energy projects

With modern manufacturing facilities and strict quality control systems, MBT delivers reliable transformer solutions for modern electrical infrastructure worldwide.

Conclusion

Pad-mounted transformers have become an essential solution for modern power distribution systems due to their safety, compact structure, operational reliability, and installation efficiency.

Whether used in urban infrastructure, industrial facilities, or renewable energy projects, pad-mounted transformers provide a highly effective and future-ready power distribution solution.

Choosing a high-quality pad-mounted transformer from an experienced manufacturer ensures long-term performance, safety, and operational stability for any electrical project.
