What is DGPT2?

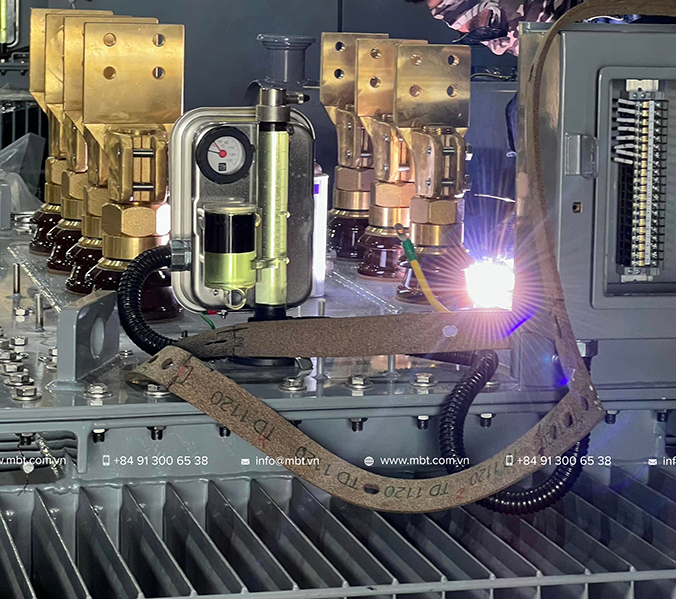

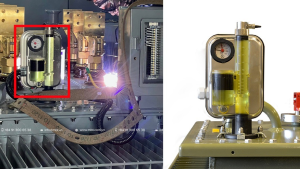

DGPT2 relay is a multi-functional protection device designed for oil-immersed hermetically sealed transformers. It combines several important monitoring and protection features into a single compact unit, helping improve transformer safety, reliability, and operational lifespan.

DGPT2 typically monitors oil temperature, internal pressure, and gas generation, providing early warning signals or trip commands when abnormal operating conditions occur.

This relay is widely used in distribution transformers, compact substations, kiosk substations, and renewable energy transformer systems.

Meaning of DGPT2

The name DGPT2 represents the integrated protection functions:

• D – Detection
• G – Gas monitoring
• P – Pressure protection
• T – Temperature protection
• 2 – Two-stage operation (Alarm & Trip)

This allows both preventive alerts and emergency shutdown capability.

Key Functions of DGPT2 Relay

Oil Temperature Monitoring

DGPT2 continuously measures transformer oil temperature.

• First stage → Alarm signal
• Second stage → Trip signal

This helps prevent insulation ageing, overheating, and possible transformer failure.

Internal Pressure Protection

During internal faults such as:

• Winding short circuits
• Insulation breakdown
• Electrical arcing

Transformer tank pressure may rise rapidly. DGPT2 detects abnormal pressure increase and sends a trip signal to disconnect the transformer, preventing tank rupture or explosion.

Gas Detection Function

Electrical or thermal faults can cause oil decomposition and gas generation. DGPT2 identifies abnormal gas accumulation, enabling early fault detection before major damage occurs.

Working Principle of DGPT2

DGPT2 uses integrated electromechanical sensors:

• Temperature sensing element
• Pressure-operated switch
• Gas detection chamber or float mechanism

Signals are transmitted to the protection panel or control system, triggering alarms, cooling system activation, or transformer tripping depending on configured thresholds.

Advantages of Using DGPT2

• Multi-protection device in a single unit
• Reduced number of external transformer accessories
• Improved transformer operational safety
• Early fault detection capability
• Simple installation and wiring
• Lower maintenance requirements
• Suitable for hermetically sealed distribution transformers

Applications of DGPT2 Relay

DGPT2 protection relay is commonly applied in:

• Oil-filled distribution transformers
• Compact kiosk substations
• Skid-mounted substations
• Containerized substations
• Solar and wind power transformer systems
• Industrial power distribution networks
• Urban electrical infrastructure

DGPT2 vs Buchholz Relay

Unlike the Buchholz relay, which is mainly used in transformers with conservators, DGPT2 is specifically designed for sealed transformers without oil conservator. It provides similar protective functions but in a more compact and integrated form.

Importance of Transformer Protection Devices

Proper transformer protection helps:

• Prevent catastrophic failures
• Improve grid reliability
• Extend transformer service life
• Reduce downtime and maintenance costs
• Ensure safe operation in critical applications

DGPT2 plays a key role in modern transformer monitoring systems, especially where space-saving and integrated protection solutions are required.

Conclusion

DGPT2 relay is an essential protection accessory for hermetically sealed oil transformers. By monitoring temperature, pressure, and gas generation, it ensures early fault detection and enhances transformer safety and reliability.

As power networks become more complex and renewable integration increases, integrated protection devices like DGPT2 are becoming increasingly important for modern transformer applications.
